VXT, Enrich Your Work

VXT, ENRICH YOUR WORK

APPLICATIONS

INDUSTRIAL CONTROL

Durable and longevity make VXT’s Touch Panel the best choice for Industrial Control Input Device.

ANTI-UV

UV is the killer of outdoor display. VXT can provide PCAP Multi Touch with Anti-UV function.

ULTRA PROTECTION

VXT’s Touch Panel offers extraordinary protection, 6mm tempered glass leads to IK09 impact resistance.

OUR BRANCHES

INDUSTRIAL

Durable and longevity make VXT’s Touch Panel the best choice for Industrial Control Input Device.

ANTI-UV

UV is the killer of outdoor display. VXT can provide PCAP Multi Touch with Anti-UV function.

ULTRA PROTECTION

VXT’s Touch Panel offers extraordinary protection, 6mm tempered glass leads to IK09 impact resistance.

ABOUT VXT

VXT dedicates to produce best quality PCAP Multi Touch products and Touch Display solutions for Industrial Control Device. Through our well-experienced team members and strong technical background, VXT always fulfill partner’s demand. Our products are extensively used in Industrial Control, Medical Care and Ruggedized Devices, widely recognized and trusted in market.VXT works hard to offer our proud products with Easy customization, Excellent Adaptation, Embedded Display and Efficient Service.

PRODUCTS

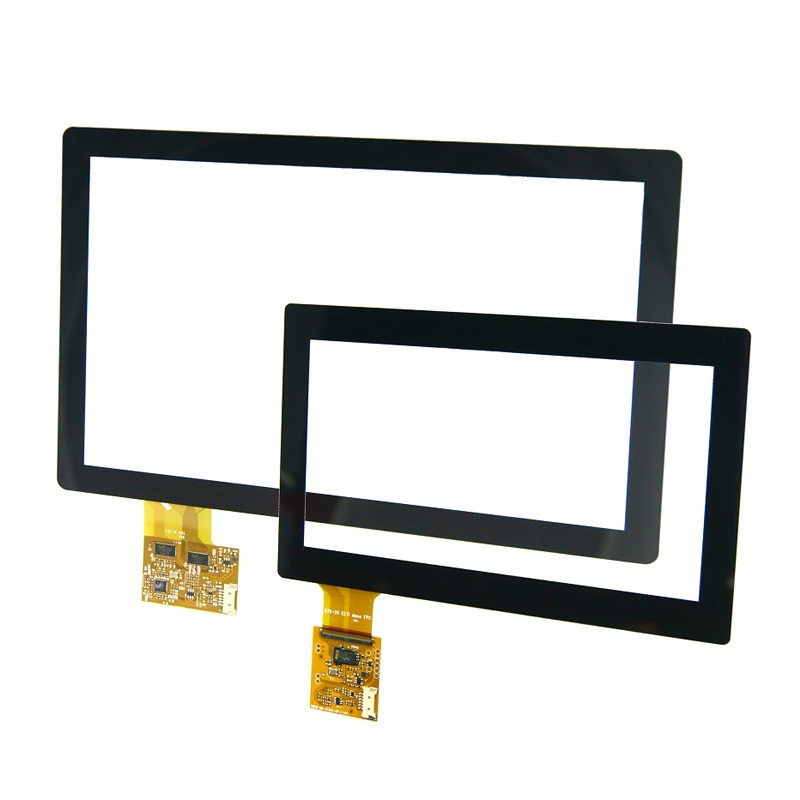

PCAP MULTI TOUCH - UV-FREE
Technology and Features: PCAP Multi Touch with UV & IR Blocking function , UV Blocking Rate > 99% , IR Blocking Rate > 70% , Light Transmission Rate > 75% , Cost Efficient , No expensive coating , No Size Limit , Best for Outdoor Applications
PCAP MULTI TOUCH - ULTRA PROTECTION
Technology and Features: Super High Accuracy PCAP Multi Touch , -30°C ~ +80°C Operating Temperature , 3mm and 6mm Ceramic Printing Tempered Glass , Up to IK09 Impact Protection (IEC62262) , Transparency > 88% and No Visible Pattern , Excellent EMS: CS 10Vrms, RS 50V/m (IEC61000-4-8) , Resolution Support up to 4096x4096 , Report Rate over 100Hz , Response Time less than 25ms , Interface: USB 2.0 and UART ( UART only in 17"~ 21.5") , Standard Models in 10.4" ~ 21.5"
Standart model
Previous slide
Next slide

SOLUTIONS

AIR BONDING

VXT offers Touch Panel and LCD Panel integration, we use VHB or Poron as lamination material. This may help customers develop the construction and stack up of display components easily. Air Gap Bonding is a very cost effective method to assemble LCD & Touch Panel, and no size limit.

OPTICAL BONDING

VXT uses optical glue to fill up the gap between LCD and Touch Panel to make it no gap, also known as Direct Bonding. Through Optical Bonding, the reflections from display surface will be much less than normal display. Therefore, the display would perform properly without hindrance. Optical Bonding is the best solution for outdoor display applications. Capable of 3.5” ~ 21.5”.

ABOUT VXT

VXT dedicates to produce best quality PCAP Multi Touch products and Touch Display solutions for Industrial Control Device. Through our well-experienced team members and strong technical background, VXT always fulfill partner’s demand. Our products are extensively used in Industrial Control, Medical Care and Ruggedized Devices, widely recognized and trusted in market.VXT works hard to offer our proud products with Easy customization, Excellent Adaptation, Embedded Display and Efficient Service.

SOLUTIONS

AIR BONDING

VXT offers Touch Panel and LCD Panel integration, we use VHB or Poron as lamination material. This may help customers develop the construction and stack up of display components easily. Air Gap Bonding is a very cost effective method to assemble LCD & Touch Panel, and no size limit.

OPTICAL BONDING

VXT uses optical glue to fill up the gap between LCD and Touch Panel to make it no gap, also known as Direct Bonding. Through Optical Bonding, the reflections from display surface will be much less than normal display. Therefore, the display would perform properly without hindrance. Optical Bonding is the best solution for outdoor display applications. Capable of 3.5” ~ 21.5”.
